Three Kings
Three Kings explores the future of urban feasibility through computational methods and multi-objective optimization, transforming complex urban challenges into actionable, data-driven insights.
Lead
Isthmus x differential
location
Three Kings, Tāmaki Makaurau (Auckland), NZ
Size
53520m²
Date
2025
Type
masterplan research
SCOPE
multi-objective optimization

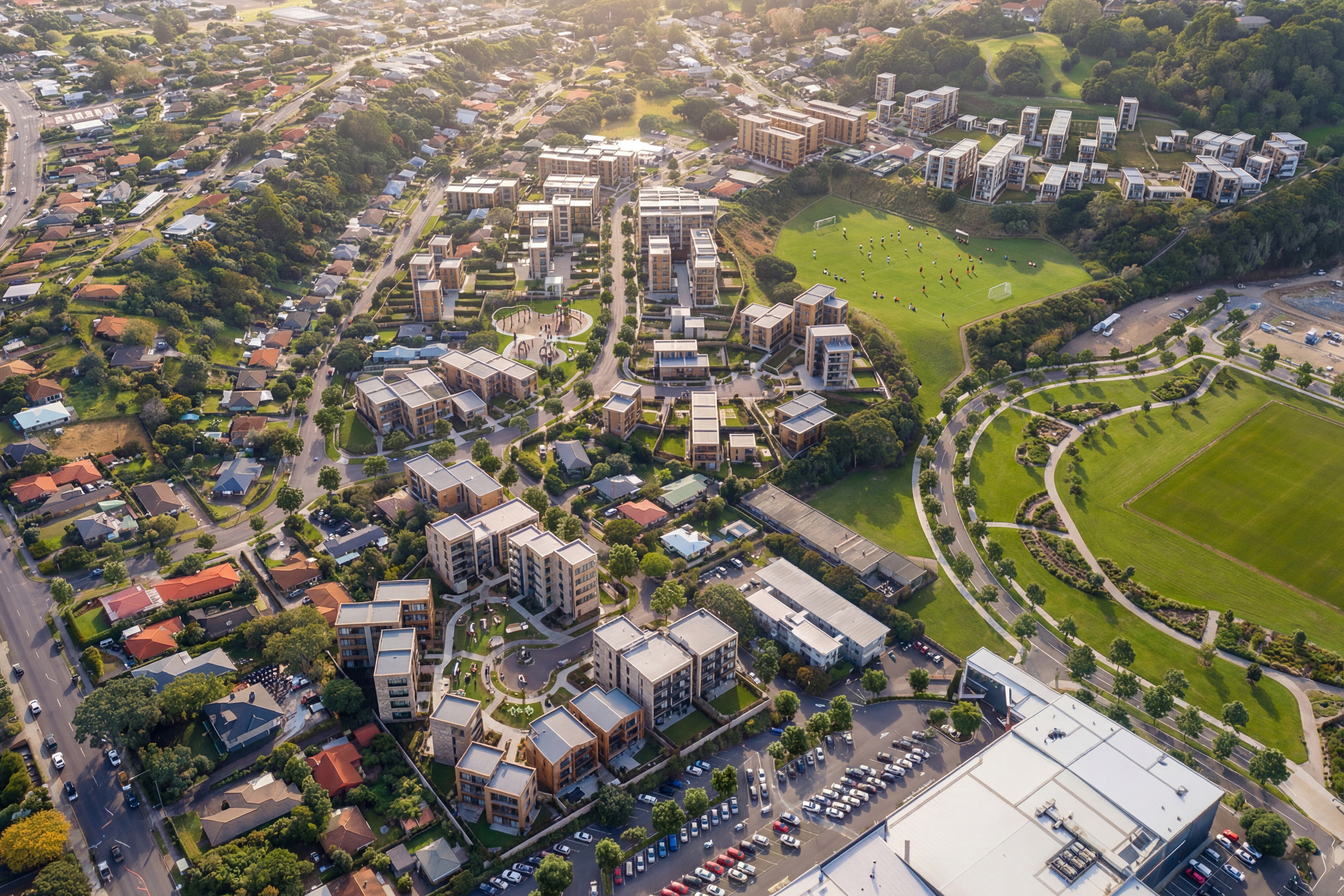

This research initiative was developed in partnership with Isthmus, an established multi-disciplinary design practice in New Zealand. The project revisited a masterplan originally conducted by Isthmus seven years ago for 73 Kaianga Ora (state) owned plots in the Three Kings area of Tāmaki Makaurau (Auckland), with a focus on increasing public housing density.
Our study explored how multi-objective computational methods could rapidly test different massing scenarios while balancing equitable access to daylight and views across the site's dynamic terrain.
The previous masterplan provided a benchmark for comparison, while rainflow simulation identified potential flooding risks—expanding evaluation criteria beyond Gross Floor Area alone to include environmental performance and site resilience. Differential designed the multi-objective algorithms and developed a web-based viewer enabling filtering and comparative analysis of solutions.
Simulation parameters included average GFA, plot coverage, excavation and infill volumes, direct sun hours, vegetation removal, park area, and view qualities—demonstrating how computational approaches can clarify and inform interwoven design decisions.
multi-objective Design & analysis

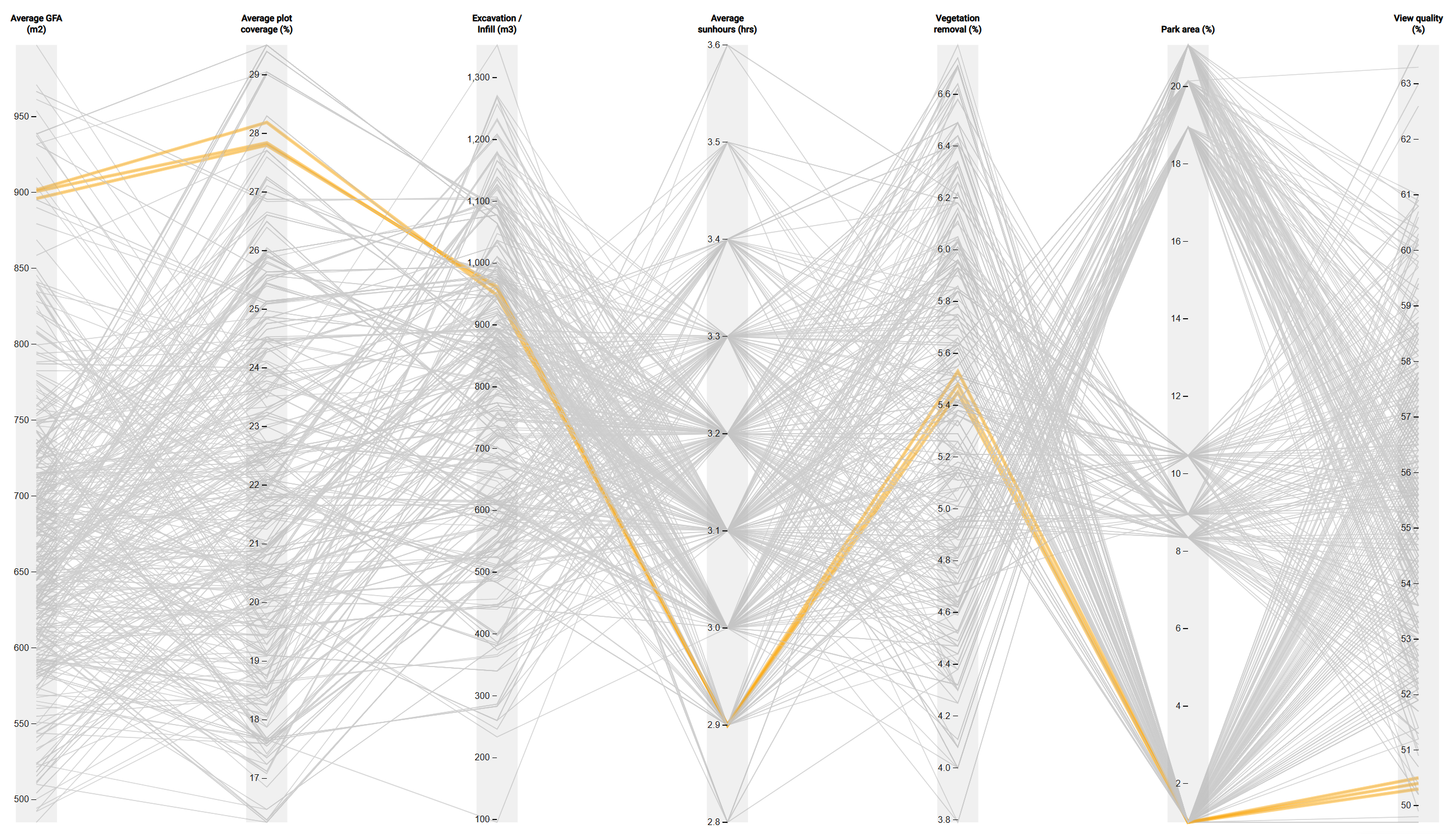

The multi-objective system generated 500 massing configurations, testing performance across multiple design parameters simultaneously. The parallel plot diagram enables filtering and comparison of solutions based on specific criteria.
This approach demonstrates that optimal design is not a single solution but a negotiated balance across parameters—a level of fine-tuning infeasible through traditional design methods. Multi-objective analysis transforms conceptual understanding of trade-offs into quantifiable relationships. For instance, reducing average direct sunlight by 15 minutes yields an average GFA increase to approximately 850m².
plot merging

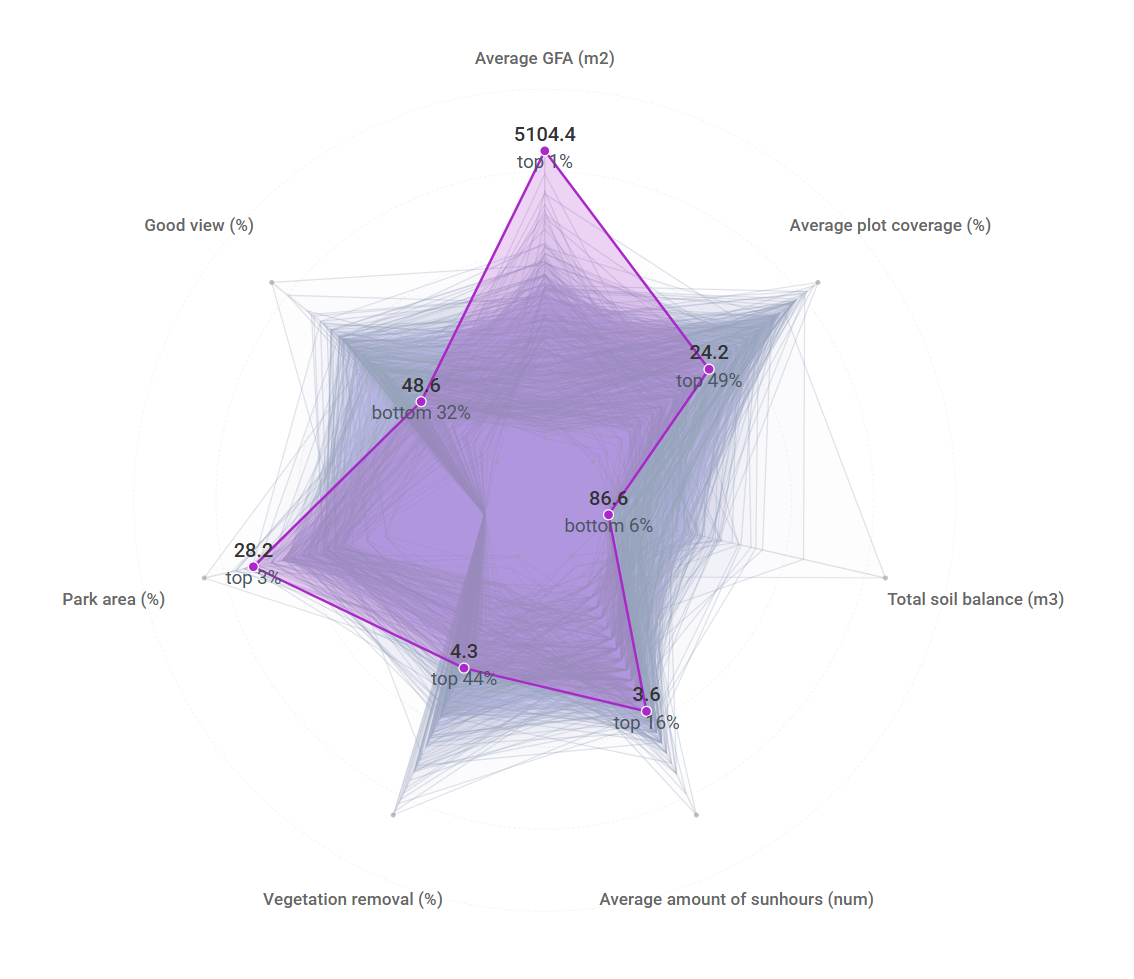

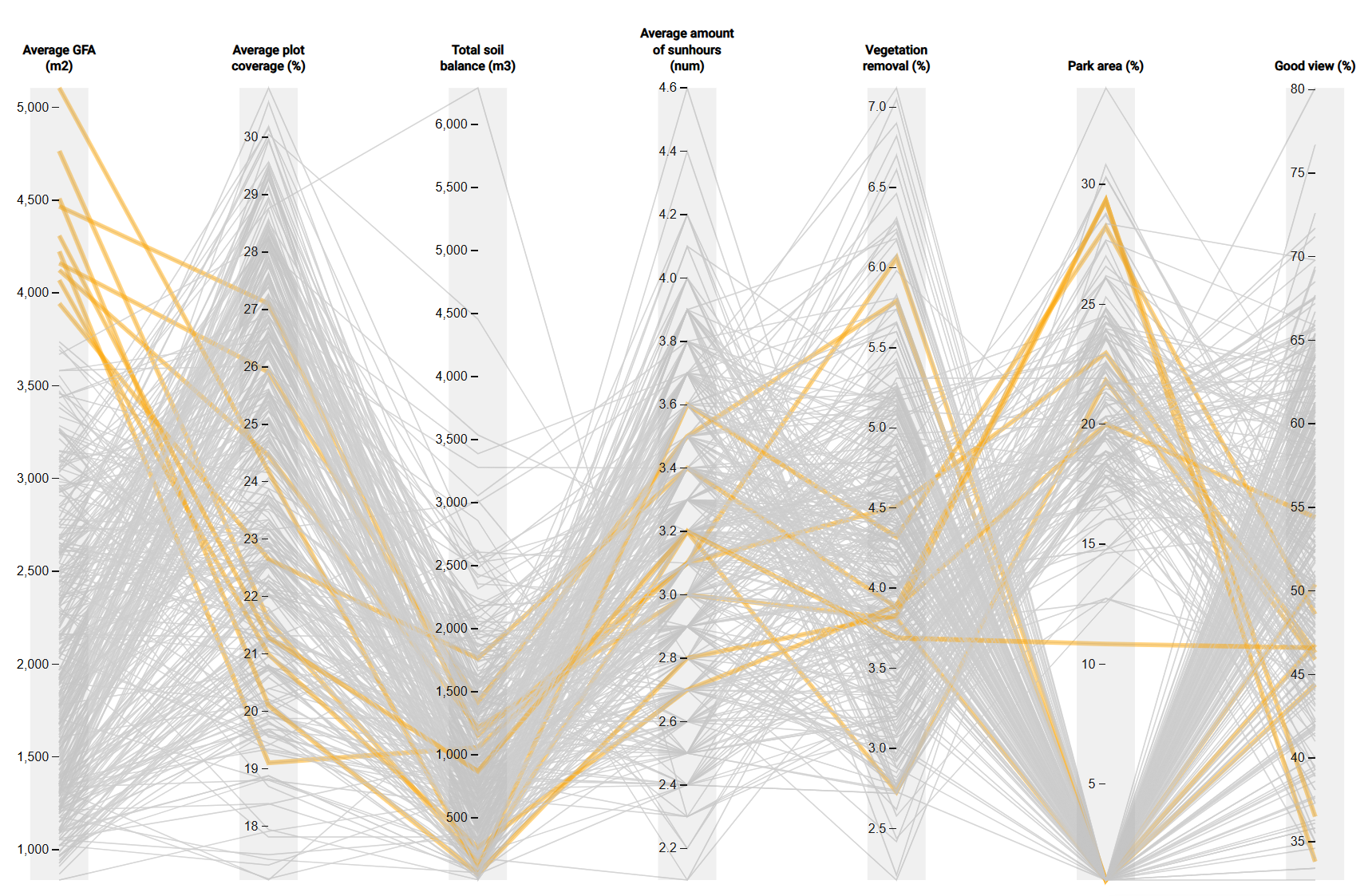

Since the entire feasibility was written as a holistic parametric system, we were also able to test various plot-merging scenarios across the 73 parcels revealing that a range of strategic merges had the potential of increasing the GFA to over 5000m2 while maintaining similar levels of daylight and views as the discrete plot study.
